RF Connector adapter n sma bnc precise connector adapter from China manufacturer

RF Connector adapter n sma bnc precise connector adapter

Price:	39.0~47.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: A24M24M0G

Production Capacity: 2000 per month

Delivery Date: 2 weeks

frequency: DC-50G

interface: 2.4mm

Means of Transport: Air

Packing: Exporting package with each...

Brand Name: cactechnology

vswr: 1.25

plating: gold

2.4mm to 2.4 male to female A24M24F0G
1. VSWR: 1.30max@50GHz
2. Body: Brass, Gold plated
3. Highly Cost-effective

Your visiting CAC's website cactechnology.com would be much appreciated for you to obtain more detailed product information and added value service.

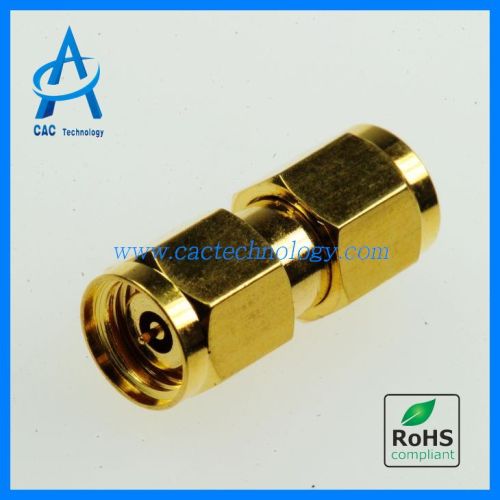

50GHz 2.4mm to 2.4mm gold plated RF coaxial adapter

-------RF Coaxial Adapter A24M24M0G-------

Features and Advantages:

1. Operating Frequency up to 50GHz

2. VSWR: DC to 50 GHz........1.25:1 max.

3. Temperature Rating: -55°C to +155°C

Construction:

1. Housing: Brass, Gold Plated Per MIL-G-45204

2. Contact: Female: Beryllium Copper (BeCu); Gold Plated Per MIL-G-45204

Male: Brass, Gold Plated Per MIL-G-45204

3. Center Contact Capture: PEI
