gold 2.92 to 2.4 adapter plug to jack low VSWR FOR test from China manufacturer

gold 2.92 to 2.4 adapter plug to jack low VSWR FOR test

Price:	35.0~43.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: A29M24M0G

Production Capacity: 2000 per month

Delivery Date: 2 weeks

frequency: DC-40G

interface: male to male

Means of Transport: Air

Packing: Exporting package with each...

Brand Name: cactechnology

VSWR: 1.20

plating: gold

2.92mm male to 2.4mm female adapter A29M24F0G
1. VSWR: 1.25max@40GHz
2. Body: Brass, Gold Plated
3. Highly Cost-effective

Your visiting CAC's website cactechnology.com would be much appreciated for you to obtain more detailed product information and added value service.

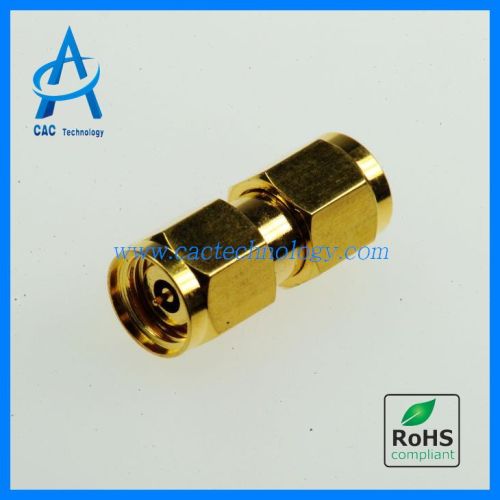

40GHz 2.92 to 2.4 gold plated RF coaxial adapter male to male

-------RF Coaxial Adapter A29M24M0G------

Features and Advantages:

1. Operating Frequency up to 40GHz

2. VSWR: DC to 40 GHz........1.20:1 max.

3. Temperature Rating: -55°C to +155°C

Construction:

1. Housing: Brass, Gold Plated Per MIL-G-45204

2. Contact: Female: Beryllium Copper (BeCu); Gold Plated Per MIL-G-45204

Male: Brass, Gold Plated Per MIL-G-45204

3. Center Contact Capture: PEI
