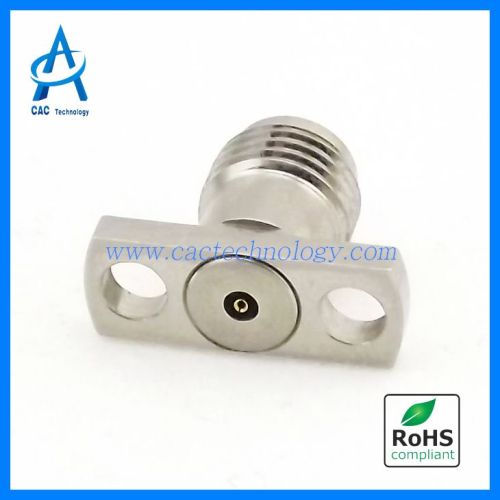

rf coaxial connector 40GHz 2.92 rf connector C29FS20F1 manufacturer from China CAC Electronic Technology Co.,Ltd.

rf coaxial connector 40GHz 2.92 rf connector

Price:	9.8~12.3 USD
Payment Terms:	T/T,WU
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: C29FS20F1

Production Capacity: 2000 per month

Delivery Date: 2 weeks

Means of Transport: Air,Air

Packing: Exporting package with each...

1. RF coaxial connector 40GHz C29FS20F1
2. Low VSWR
3. Low RF Leakage
4. Broad Temperature Range

-----CONNECTING YOU SHE ME rf coaxial connector 40GHz 2.92 rf connector C29FS20F1 SHARING CLEAR CLEAN CARE---

Your visiting CAC's website cactechnology.com would be much appreciated for you to obtain more detailed product information and added value service.

2.92mm Female 360°Metal to Metal Contact 40GHz

-----------C29FS20F1 RF Coaxial Connector-----------

Features and Advantages:

1. Operating frequency up to 40GHz

2. Low VSWR: DC to 27 GHz........1.10:1 max.

27 to 40GHz......1.15:1 max.

3. Temperature Rating: -55°C to +135°C

Interface:

Per MIL-STD-348

2.92 mm (SMK) Figs. 323-1 and 323-2

Construction:

1. Housing: Stainless Steel, Passivated

2. Contact: Female: Beryllium Copper (BeCu); Gold Plated Per MIL-G-45204

Male: Brass, Gold Plated Per MIL-G-45204

3. Center Contact Capture: PEI

4. Certification: RoHS
