26.5GHz armoured testing RF cable assembly extra low VSWR flexible manufacturer from China CAC Electronic Technology Co.,Ltd.

26.5GHz armoured testing RF cable assembly extra low VSWR flexible

Price:	104.0~127.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Air

Packing: Exporting package with each...

Production Capacity: 2000 per month

Delivery Date: 1 weeks

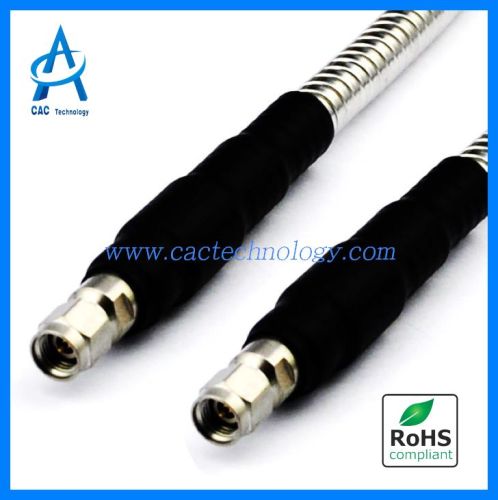

26.5GHz armoured testing RF cable assembly
1. extra low VSWR : 26.5GHz 1.25max;
2. Armour: stainless steel flexible tube

welcome to visit cac-mall.com to download datasheet .

26.5GHz armoured testing RF cable assembly extra low VSWR flexible

---------------RF Coaxial Cable Assembly------------

1. Precision testing cable assembly specially designed for the 26.5GHz testing

2. Armour: stainless steel flexible tube

3. Typical VSWR: 1.20 max up to 26.5GHz

4. Suitable Connector: SMA, N , 3.5mm

5 Material of Connector : stainless steel

Cable Type	47P1
Operating Frequency(GHz)	26.5
Impedance (Ohm)	50
Jacket Diameter(mm)	5.3
Insulation Materials	LD PTFE

-----CONNECTING YOU SHE ME 26.5GHz armoured testing RF cable assembly extra low VSWR flexible SHARING CLEAR CLEAN CARE---

Your visiting CAC's website cactechnology.com would be much appreciated for you to obtain more detailed product information and added value service.
